Indoor LED Displays Pixon

PIXON

New Generation Fine-Pitch LED Display

16:9 Panel Size, Superior Visual Performance

PIXON is Dakco’s premium fine-pitch LED display designed for high-end indoor applications. Built with flip-chip COB technology, it delivers higher reliability, improved heat dissipation, and long-term operational stability. A common-cathode + DC-DC architecture reduces power consumption, while the nano-optical coating delivers deep blacks and contrast ratios of up to 20,000:1. With a 3840Hz refresh rate, 170° wide viewing angles, and a fully encapsulated IP54-rated COB structure, PIXON ensures smooth visuals, durability, and easy maintenance.

Nano-optical coating delivers deep blacks and contrast ratios of up to 20,000:1.

20000:1

High Contrast

≥3,840 Hz

High Refresh Rate

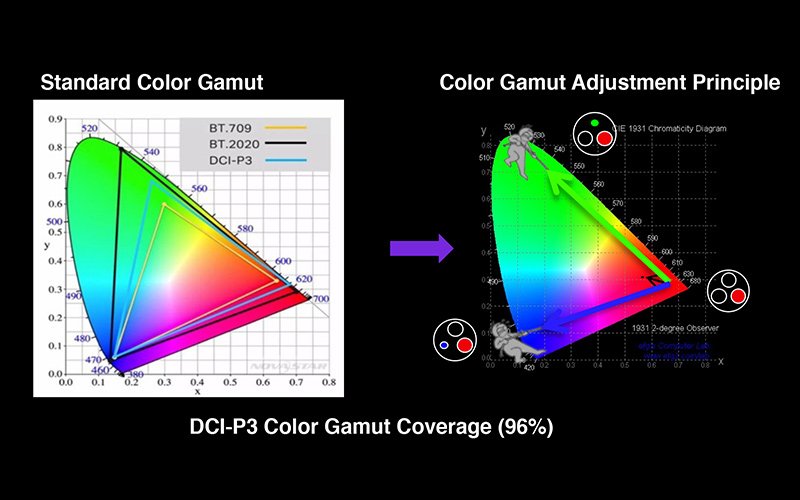

DCI-P3 Gamut

True-to-Life Colors

Every Angle, Perfect View

Direct chip-on-board technology eliminates bezel restrictions, allowing for a 170° viewing angle in both horizontal and vertical directions and maximized image coverage.

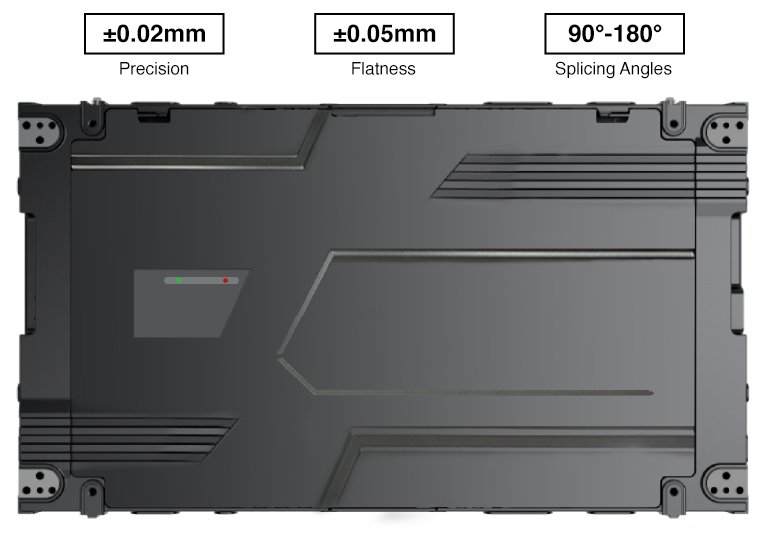

A Delightful User Experience

Alignment Pin

X-Axis Adjustment

Y-Axis Adjustment

Z-Axis Adjustment

Power Port

Signal Port

Specifications

Pixel Pitch	0.9375 mm	1.25 mm	1.56 mm	1.875 mm
LED Package Type	COB	COB	COB	COB
Module Matrix	160x180	120x135	96x108	80x90
Module Dimensions	150mmx168.75mm	150mmx168.75mm	150mmx168.75mm	150mmx168.75mm
Module Per Unit (WxH)	4x2	4x2	4x2	4x2
Cabinet Matrix	640x360	480x270	384x216	320x180
Cabinet Size (WxHxD)	600x337.5x43.5 (mm)	600x337.5x43.5 (mm)	600x337.5x43.5 (mm)	600x337.5x43.5 (mm)
Cabinet Area	0.2025㎡	0.2025㎡	0.2025㎡	0.2025㎡
Cabinet Weight	5KG (11LBS)	5KG (11LBS)	5KG (11LBS)	5KG (11LBS)
Pixels / ㎡ (Density)	1,137,777	640,000	409,600	284,444
Cabinet Flatness	≤0.1mm	≤0.1mm	≤0.1mm	≤0.1mm
Brightness (NITS)	600 / 1,000 (Customize)	600 / 1,000 (Customize)	600 / 1,000 (Customize)	600 / 1,000 (Customize)
Color Temperature	3,000-10,000K	3,000-10,000K	3,000-10,000K	3,000-10,000K
Ideal Viewing Angle	170°(H) / 170°(V)	170°(H) / 170°(V)	170°(H) / 170°(V)	170°(H) / 170°(V)
Contrast Ratio	10,000 : 1 / 20,000 :1	10,000 : 1 / 20,000 :1	10,000 : 1 / 20,000 :1	10,000 : 1 / 20,000 :1
Max. Power Consumption	28W/ft² (300W/㎡) / 46W/ft² (500W/㎡)	31W/ft² (325W/㎡) / 47W/ft² (510W/㎡)	31W/ft² (325W/㎡) / 47W/ft² (510W/㎡)	28W/ft² (300W/㎡) / 46W/ft² (500W/㎡)
Avg. Power Consumption	16W/ft² (175W/㎡) / 25W/ft² (265W/㎡)	15W/ft² (160W/㎡) / 24W/ft² (260W/㎡)	15W/ft² (160W/㎡) / 24W/ft² (260W/㎡)	14W/ft² (150W/㎡) / 23W/ft² (250W/㎡)
Input Voltage	100 ~ 240VAC	100 ~ 240VAC	100 ~ 240VAC	100 ~ 240VAC
Video Frame Rate	60 Frames/Second	60 Frames/Second	60 Frames/Second	60 Frames/Second
Refresh Rate	≥3,840 Hz	≥3,840 Hz	≥3,840 Hz	≥3,840 Hz
LED Life - Span	100,000 hours	100,000 hours	100,000 hours	100,000 hours
Ingress Protection	IP 54 (Surface Cleaning with Water)	IP 54 (Surface Cleaning with Water)	IP 54 (Surface Cleaning with Water)	IP 54 (Surface Cleaning with Water)
Operating Temperature	-10 °C - +40 °C	-10 °C - +40 °C	-10 °C - +40 °C	-10 °C - +40 °C
Storage Temperature	-20 °C - +60 °C	-20 °C - +60 °C	-20 °C - +60 °C	-20 °C - +60 °C
Operating Humidity	10 - 90% (No Condesation)	10 - 90% (No Condesation)	10 - 90% (No Condesation)	10 - 90% (No Condesation)
Storage Humidity	10 - 95% (No Condesation)	10 - 95% (No Condesation)	10 - 95% (No Condesation)	10 - 95% (No Condesation)

Pixel Pitch (Resolution)2	6.67 mm	8 mm	10 mm
Pixel Pitch (Resolution)	6.67 mm	8 mm	10 mm
LED Package Type	6.67 mm	8 mm	10 mm
Pixels Per Sq. Foot (Density)	6.67 mm	8 mm	10 mm
Module Dimensions	6.67 mm	8 mm	10 mm
Module Matrix	6.67 mm	8 mm	10 mm
Module Weight	6.67 mm	8 mm	10 mm
Driving Method	6.67 mm	8 mm	10 mm
Refresh Rate	6.67 mm	8 mm	10 mm
Video Frame Rate	6.67 mm	8 mm	10 mm
Grayscale	6.67 mm	8 mm	10 mm
Color Depth	6.67 mm	8 mm	10 mm
Contrast Ratio	6.67 mm	8 mm	10 mm

A Premium Indoor Display Designed for Close Viewing

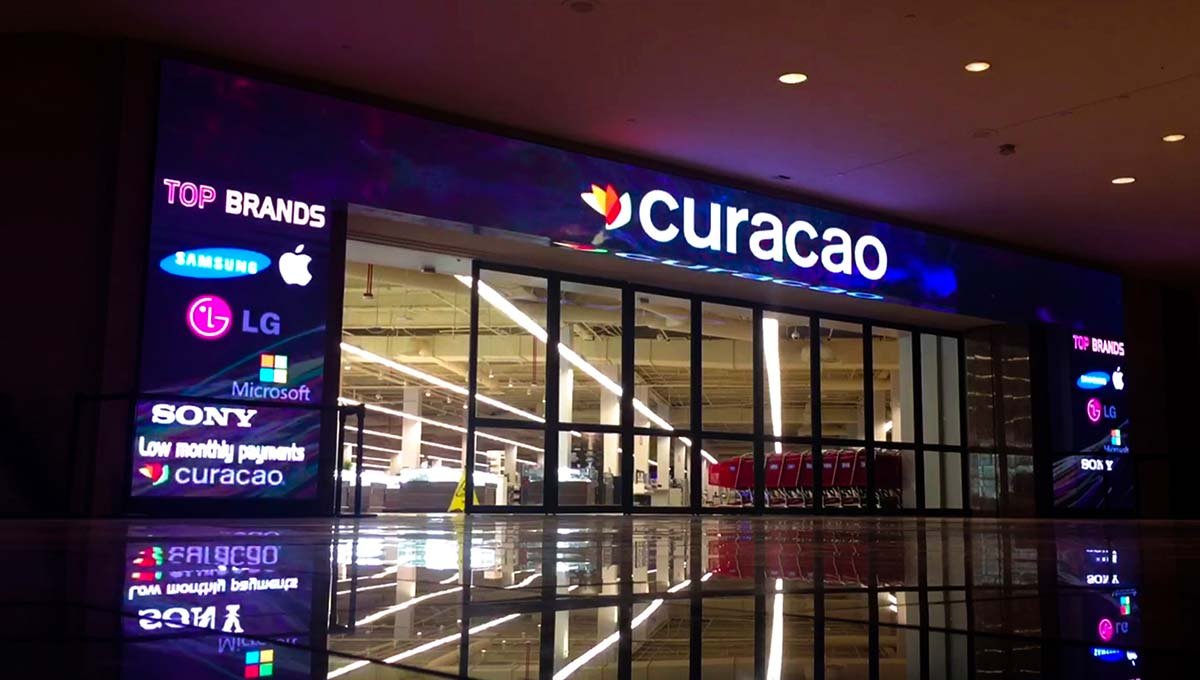

Curacao

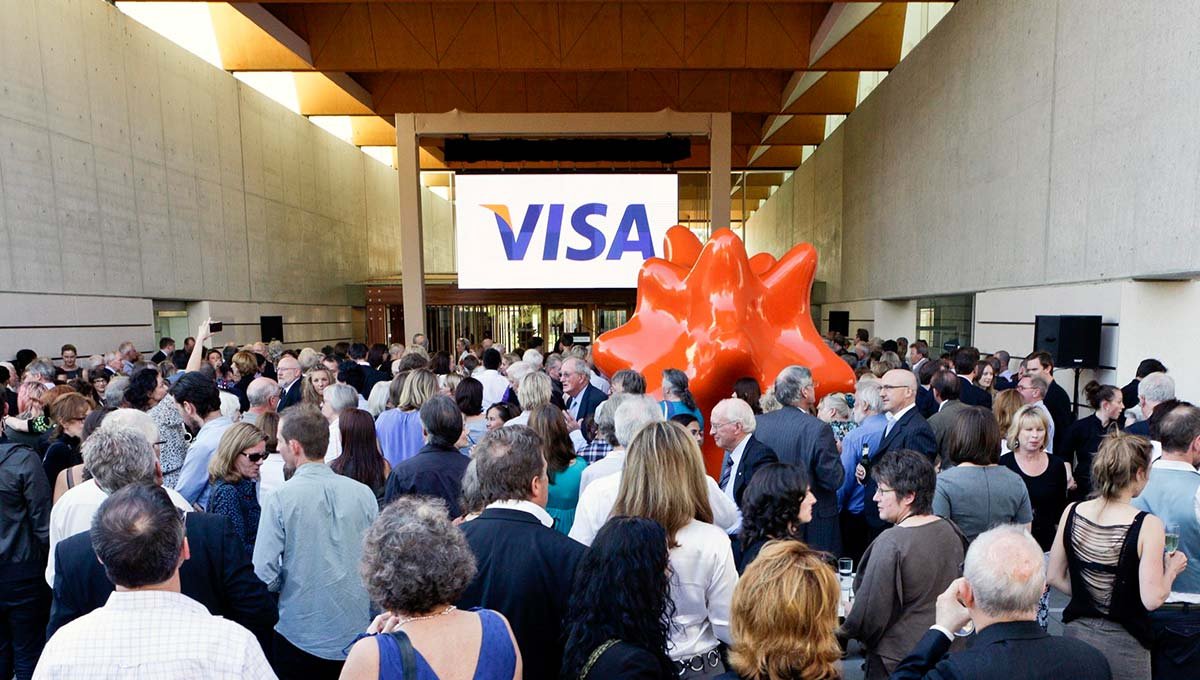

Commercial LED Display

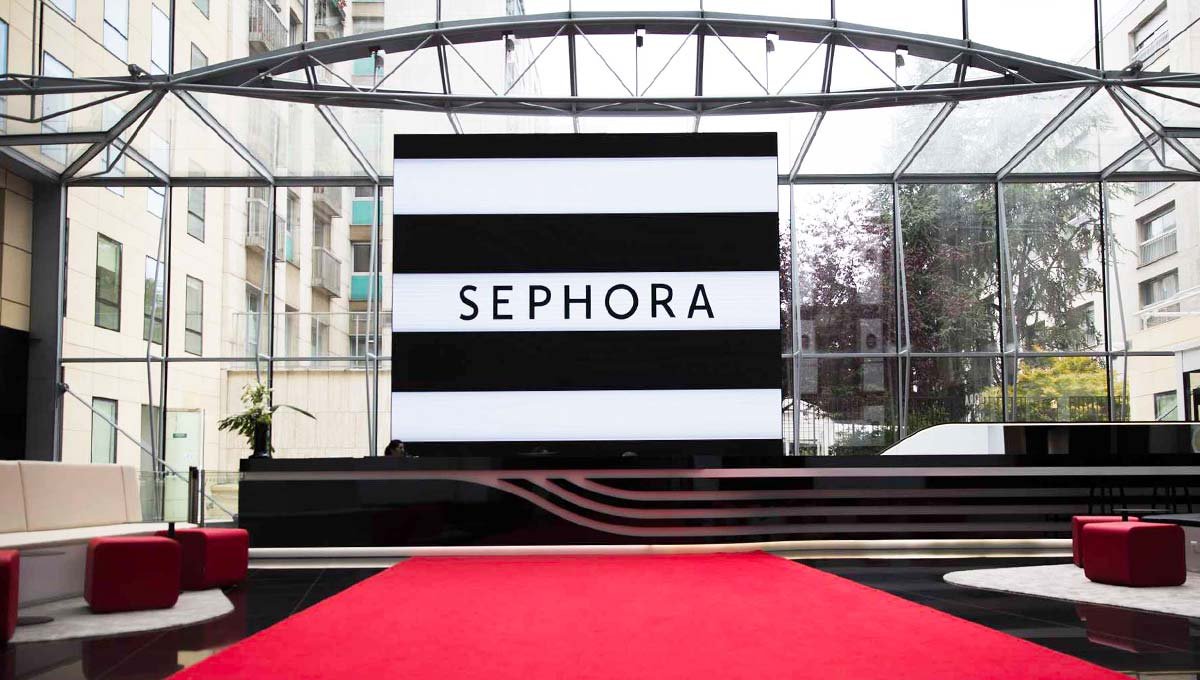

Sephora New Headquarters Building

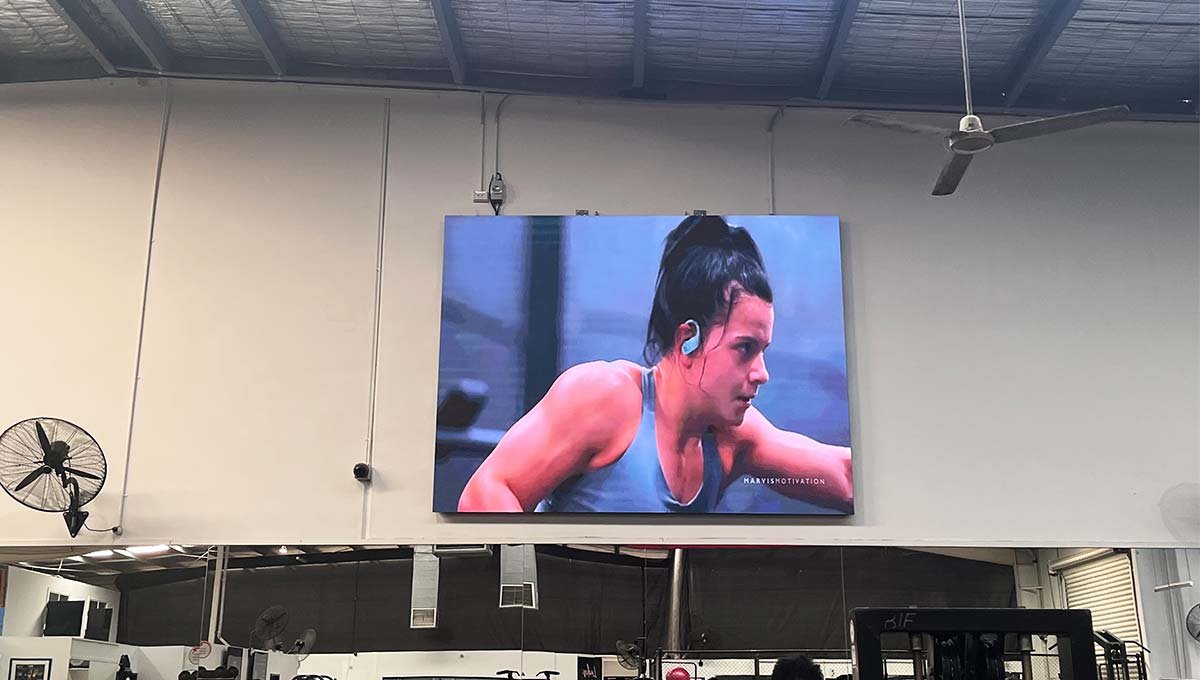

Gym LED Display

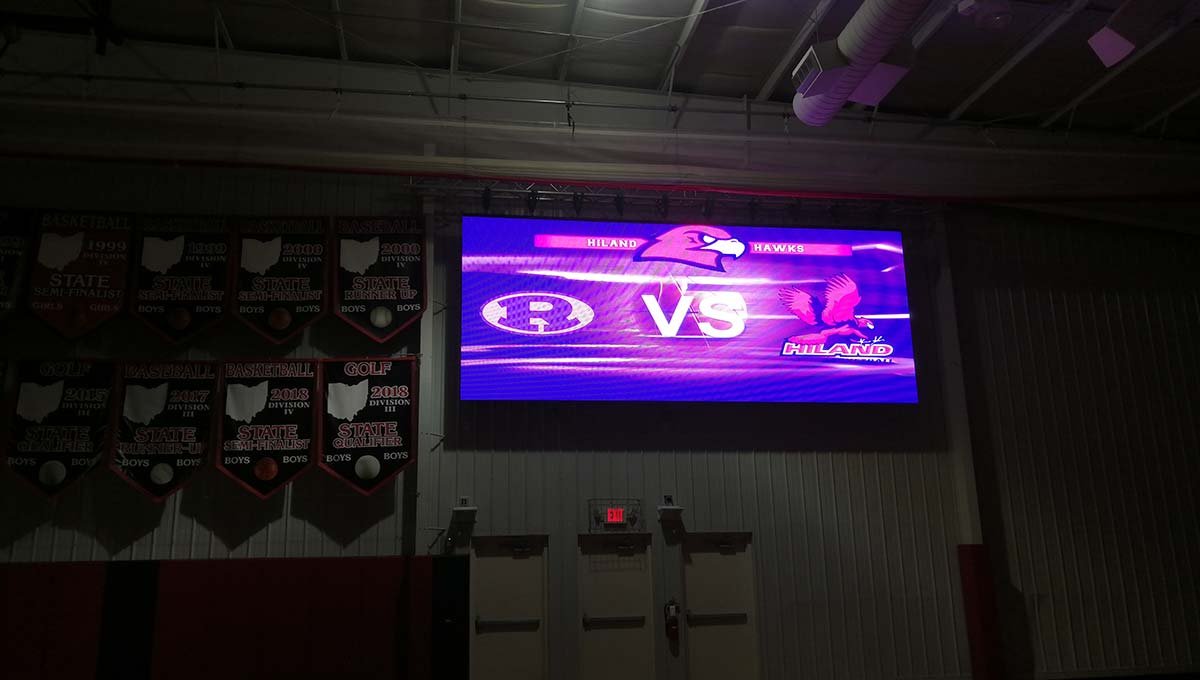

LED Display in USA

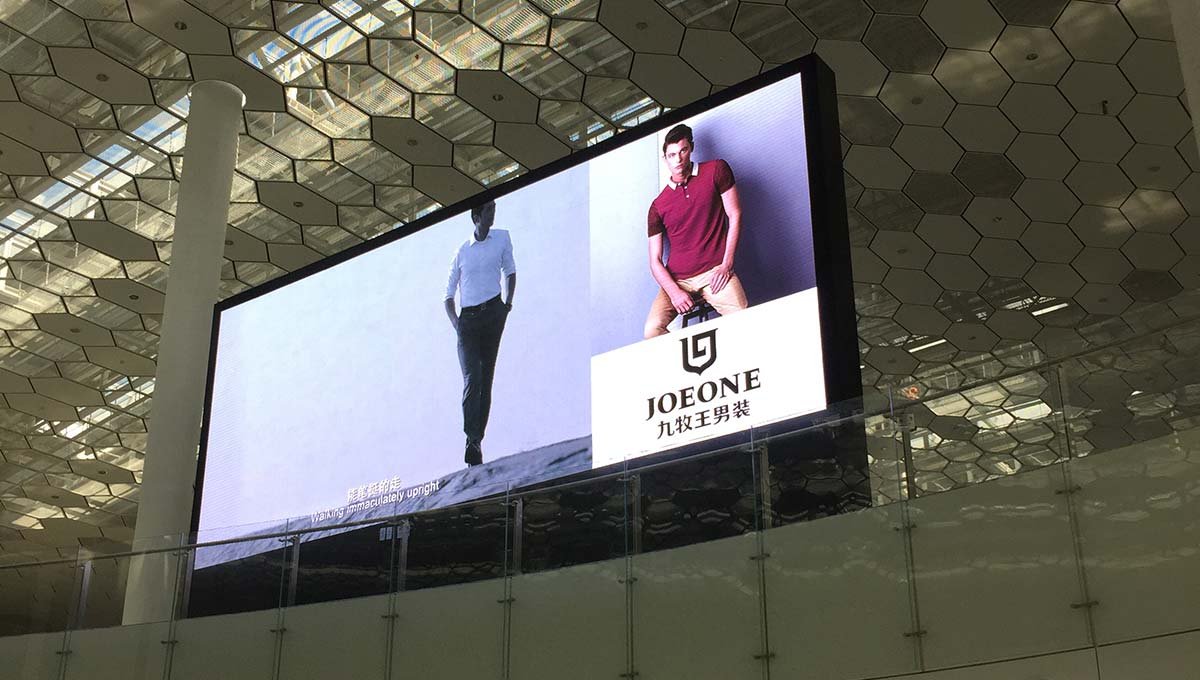

Airport LED Display

An Investment in Peace of Mind

The full flip-chip COB design eliminates fragile wire bonding, reducing potential soldering failure points while improving heat dissipation and long-term reliability.

The COB structure with polymer encapsulation provides enhanced protection during transportation and installation, while the fully encapsulated surface supports direct cleaning with a wet cloth and pure water, without risk of damage.
