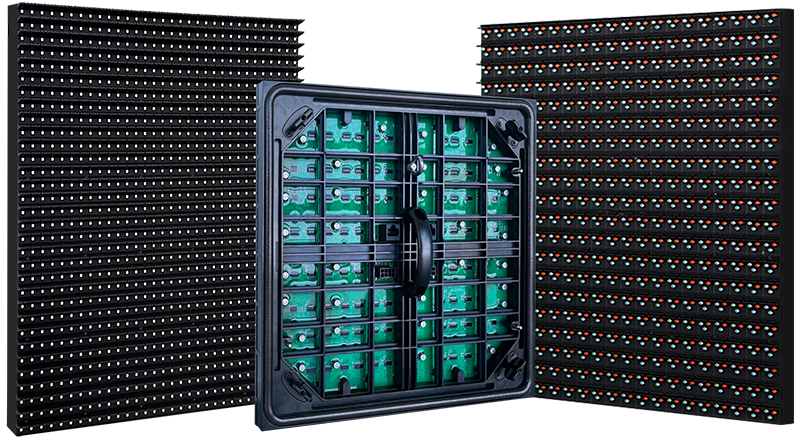

Dakco’s Genesis II LED displays are specially built for outdoor environment to withstand the harshest weather conditions while offering excellent performance. By using best quality LEDs, high-contrast masks, well-designed structure and common-cathode technology at a reasonable price, it’s the perfect solution for billboards, schools, parks, building-mounted displays, and outdoor retail locations.
Our inventory in the U.S. saves your time and money!
Well-Organized Internal Structure
Receiving card, high RPM cooling fans and efficient switch power supplies are placed with cooling fans serving as air outlet on top, power supplies in the middle and air inlet at the bottom.
Well-Organized1 Internal Structure
Receiving card, high RPM cooling fans and efficient switch power supplies are placed with cooling fans serving as air outlet on top, power supplies in the middle and air inlet at the bottom.11
1Cooling Fans
2Receiving Cards11
3Switch Power Supplies
4LED Modules (individually powered & controlled)
High Brightness
With its excellent brightness of 6,500+ nits (*SMD) and 10,000+ nits (*DIP), it provides incredible performance even in direct sunlight.
>6500
Nits ( SMD )
>10000
Nits ( DIP )
Stunning Visual Impact
Starting from 3mm, the fine pixel pitch on Genesis II will allow you to display more content on your signs. With 281 trillion colors and a high refresh rate of 3,840 Hz , it succeeds in creating an amazingly sharp image quality with more consistent and vibrant colors.
281
Trillion Colors
3840hz
Refresh Rate
Common Cathode Technology
Common cathode technology powers individual LED in a more efficient manner by providing each with dedicated & lower supply voltages. By controlling the power supply voltages, it cuts down heat dissipation at the PCB level, lowering power consumption by 40%. As a result, the LED display itself generates less heat.
Higher Reliability, Longer Service Life
30% More Energy-Efficient, 30% Less Heat Dissipation
3.8V Input Voltage
Advanced Thermal Management
High RPM cooling fans (maximum speed: 4000rpm) are integrated into the cabinets to remove heat. It starts working when the temperature hits 40℃/104℉ and continues running until the temperature drops to 35℃/95℉, following the instruction of Dakco’s unique thermal control system. The control system makes sure that every use of electricity is at maximum efficiency.
Standard Module
Custom Module (90°)
Custom Module (Curved)
Flexible in Shapes
Genesis II is available in assorted module sizes, various cabinet types, custom corners to fit any application. It delivers bold and creative pictures to meet your needs and bring your designs to life.
Wow Factor
Seamless Corner
Flexible in Shapes
Genesis II is available in assorted module sizes, various cabinet types, custom corners to fit any application. It delivers bold and creative pictures to meet your needs and bring your designs to life.
Wow Factor
Seamless Corner
Flexible in Shapes
Genesis II is available in assorted module sizes, various cabinet types, custom corners to fit any application. It delivers bold and creative pictures to meet your needs and bring your designs to life.
Wow Factor
Seamless Corner
Optimized Louver Design
Standard louvers allow for the widest angle of view, while Dakco’s long louvers are excellent at improving contrast levels and cutting down on reflections.
Dakco’s Long LouversTraditional Louvers
Front and Back Ventilation
Both front and back ventilation are supported. In the circumstances where 3” gaps are not achieved in the back ventilation in recessed installations, front ventilation is a perfect solution provided.
Front VentilationBack Ventilation
SMD and DIP Available
SMD LEDs are smaller in size, brighter in color, and better in resolution. DIP LEDs are cost-effective and reliable for outdoor digital signage as they can easily achieve the ultra-high brightness.

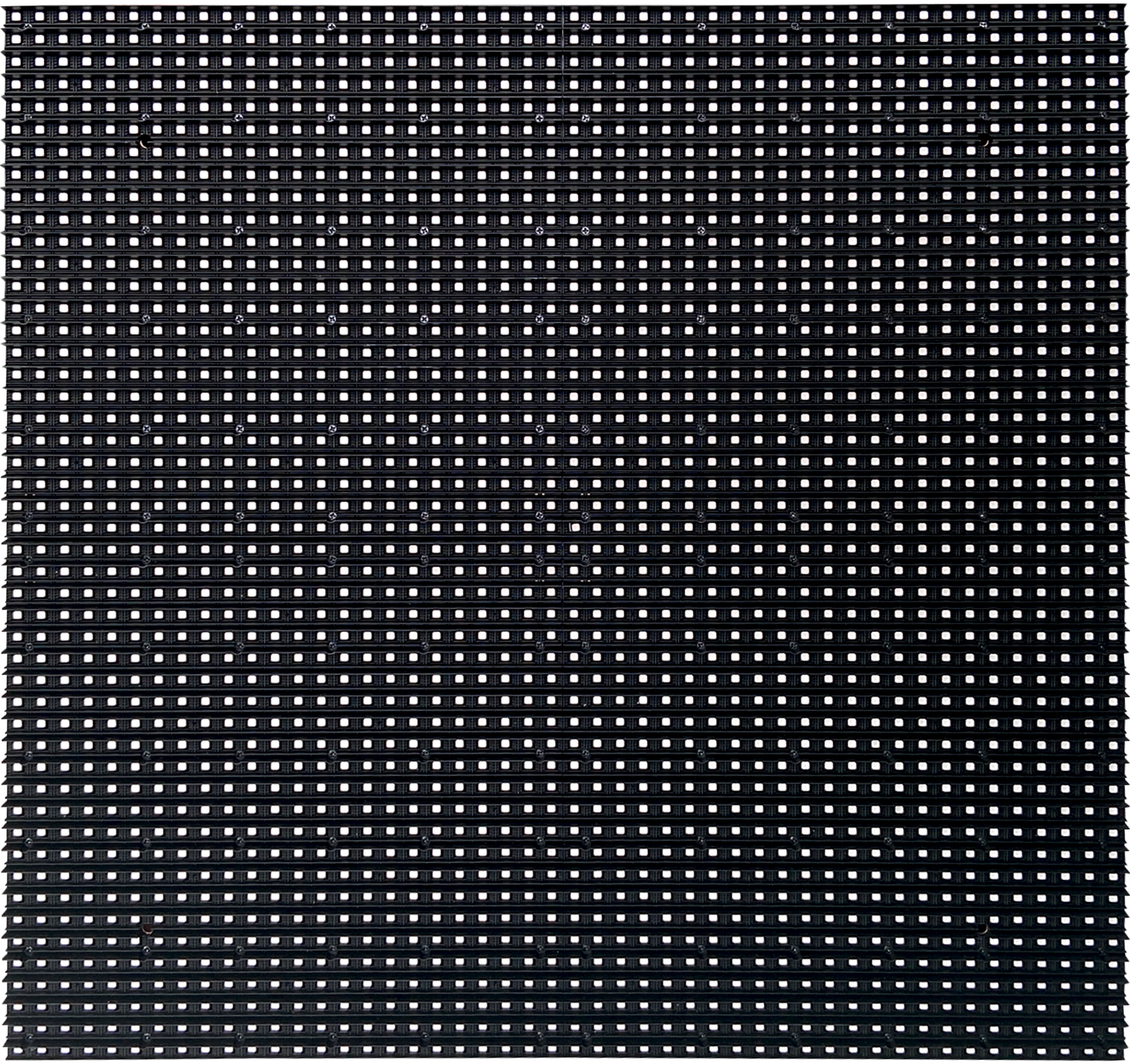

SMD
DIP
Easy Maintenance
Genesis II is designed with a simple structure, allowing customers to install, disassemble and maintain easily. The module can be removed in 20 seconds with just one tool (Allen key/hexagon wrench).
| Pixel Pitch | 3 mm | 4 mm | 6.67 mm | 8 mm | 10 mm |
| ED Package Type | SMD | SMD | SMD | SMD | SMD |
| Pixels Per Sq. m (Density) | 104,329 | 62,500 | 22,500 | 15,625 | 10,000 |
| Module Dimensions | 12.6”x12.6” (320mm x 320mm) | 12.6”x12.6” (320mm x 320mm) | 12.6”x12.6” (320mm x 320mm) | 12.6”x12.6” (320mm x 320mm) | 12.6”x12.6” (320mm x 320mm) |
| Module Matrix | 104x104 | 80x80 | 48x48 | 40x40 | 32x32 |
| Module Weight | 3 LB (1.4 KG) | 3 LB (1.4 KG) | 3 LB (1.4 KG) | 3 LB (1.4 KG) | 3 LB (1.4 KG) |
| Driving Method | 1/13 constant current | 1/10 constant current | 1/6 constant current | 1/4 constant current | 1/2 constant current |
| Refresh Rate | ≥3,840 Hz | ≥3,840 Hz | ≥1,920 / 3,840 Hz | ≥1,920 / 3,840 Hz | ≥1,920 / 3,840 Hz |
| Video Frame Rate | 60 frames/second | 60 frames/second | 60 frames/second | 60 frames/second | 60 frames/second |
| Grayscale | 65,536 (281 trillion colors) | 65,536 (281 trillion colors) | 65,536 (281 trillion colors) | 65,536 (281 trillion colors) | 65,536 (281 trillion colors) |
| Color Depth | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit |
| Brightness (NITS) | ≥3,500 | ≥4,500 | ≥6,500 / 10,000 | ≥6,500 /10,000 | ≥6,500 / 10,000 |
| Brightness Control | 256 levels | 256 levels | 256 levels | 256 levels | 256 levels |
| Ideal Viewing Range | 10’ or greater | 13’ or greater | 18’ or greater | 22’ or greater | 28’ or greater |
| Ideal Viewing Angle | 160°(H) / 120°(V) | 160°(H) / 120°(V) | 160°(H) / 120°(V) | 160°(H) / 120°(V) | 160°(H) / 120°(V) |
| Max. Power Consumption | 74W/ft² (800W/m²) | 74W/ft² (800W/m²) | 56W/ft²(600W/㎡) | 56W/ft²(600W/㎡) | 56W/ft²(600W/㎡) |
| Avg. Power consumption | 24W/ft²(260W/㎡) | 24W/ft²(260W/㎡) | 18W/ft²(200W/㎡) | 18W/ft²(200W/㎡) | 18W/ft²(200W/㎡) |
| Input Voltage | 88 ~ 264VAC | 88 ~ 264VAC | 88 ~ 264VAC | 88 ~ 264VAC | 88 ~ 264VAC |
| Ingress Protection | IP65 | IP65 | IP65 | IP65 | IP65 |
| Operating Temperature | -40 °F - +140°F (-40 °C - +60 °C) | -40 °F - +140°F (-40 °C - +60 °C) | -40 °F - +140°F (-40 °C - +60 °C) | -40 °F - +140°F (-40 °C - +60 °C) | -40 °F - +140°F (-40 °C - +60 °C) |
| MTBF | >5,000 hours | >5,000 hours | >5,000 hours | >5,000 hours | >5,000 hours |
| LED Life - Span | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours |
| Cabinet Size | Customized | Customized | Customized | Customized | Customized |
| Cabinet Material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Cabinet Weight | 7.78 LB/ft² (38 KG/㎡) | 7.78 LB/ft² (38 KG/㎡) | 7.78 LB/ft² (38 KG/㎡) | 7.78 LB/ft² (38 KG/㎡) | 7.78 LB/ft² (38 KG/㎡) |
| Pixel Pitch | 10 mm | 13.3mm | 16 mm |
| LED Package Type | DIP | DIP | DIP |
| Pixels Per Sq. m (Density) | 10,000 | 5,652 | 3,906 |
| Module Dimensions | 12.6”x12.6” (320mm x 320mm) | 12.6”x12.6” (320mm x 320mm) | 12.6”x12.6” (320mm x 320mm) |
| Module Matrix | 32x32 | 24x24 | 20x20 |
| Module Weight | 4.5 LB (2 KG) | 4.5 LB (2 KG) | 4.5 LB (2 KG) |
| Driving Method | 1/4 constant current | 1/2 constant current | Static |
| Refresh Rate | ≥3,840 Hz | ≥3,840 Hz | ≥3,840 Hz |
| Video Frame Rate | 60 frames/second | 60 frames/second | 60 frames/second |
| Grayscale | 65,536 (281 trillion colors) | 65,536 (281 trillion colors) | 65,536 (281 trillion colors) |
| Color Depth | 16 bit | 16 bit | 16 bit |
| Brightness (NITS) | ≥10,000 | ≥10,000 | ≥10,000 |
| Brightness Control | 256 levels | 256 levels | 256 levels |
| Ideal Viewing Range | 28’ or greater | 42’ or greater | 52’ or greater |
| Ideal Viewing Angle | 120°(H) / 60°(V) | 120°(H) / 60°(V) | 120°(H) / 60°(V) |
| Max. Power Consumption | 35W/ft²(380W/㎡) | 35W/ft²(380W/㎡) | 35W/ft²(380W/㎡) |
| Avg. Power consumption | 11W/ft²(120W/㎡) | 11W/ft²(120W/㎡) | 11W/ft²(120W/㎡) |
| Input Voltage | 88 ~ 264VAC | 88 ~ 264VAC | 88 ~ 264VAC |
| Ingress Protection | IP65 | IP675 | IP65 |
| Operating Temperature | -40 °F - +140°F (-40 °C - +60 °C) | -40 °F - +140°F (-40 °C - +60 °C) | -40 °F - +140°F (-40 °C - +60 °C) |
| MTBF | >5,000 hours | >5,000 hours | >5,000 hours |
| LED Life - Span | 100,000 hours | 100,000 hours | 100,000 hours |
| Cabinet Size | Customized | Customized | Customized |
| Cabinet Material | Aluminum | Aluminum | Aluminum |
| Cabinet Weight | 9 LB/ft² (45 KG/㎡) | 9 LB/ft² (45 KG/㎡) | 9 LB/ft² (45 KG/㎡) |
