This 2-in-1 power & signal connector is built with a backup design to maintain the operational stability of the screens.

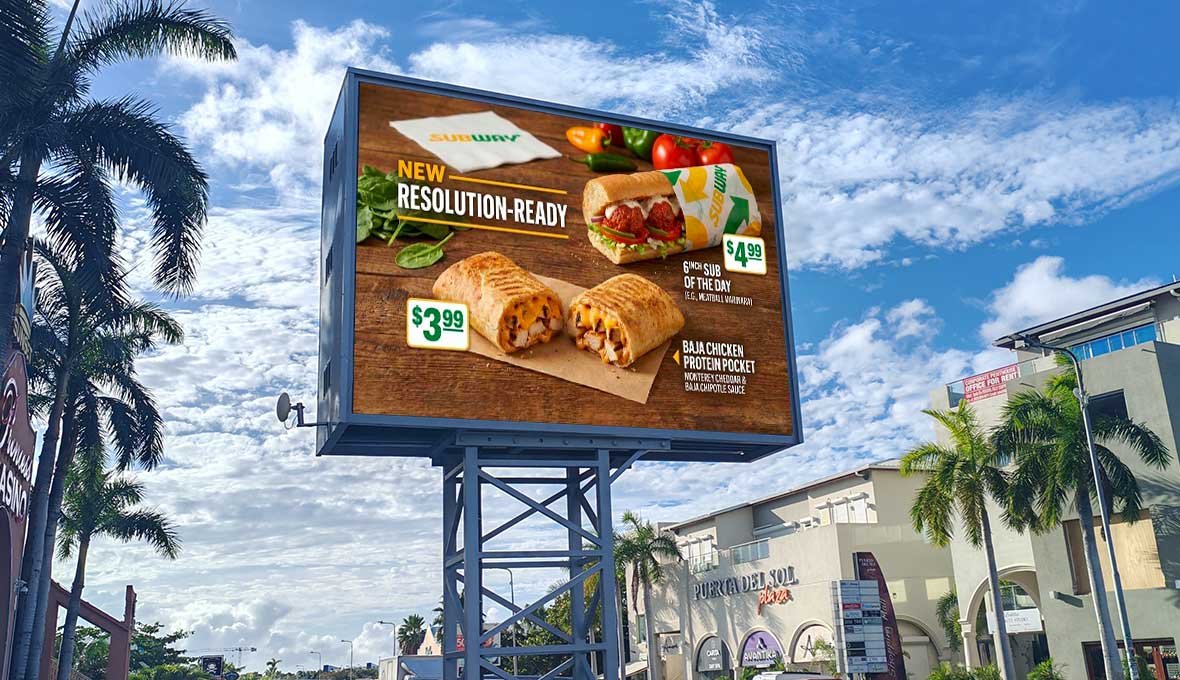

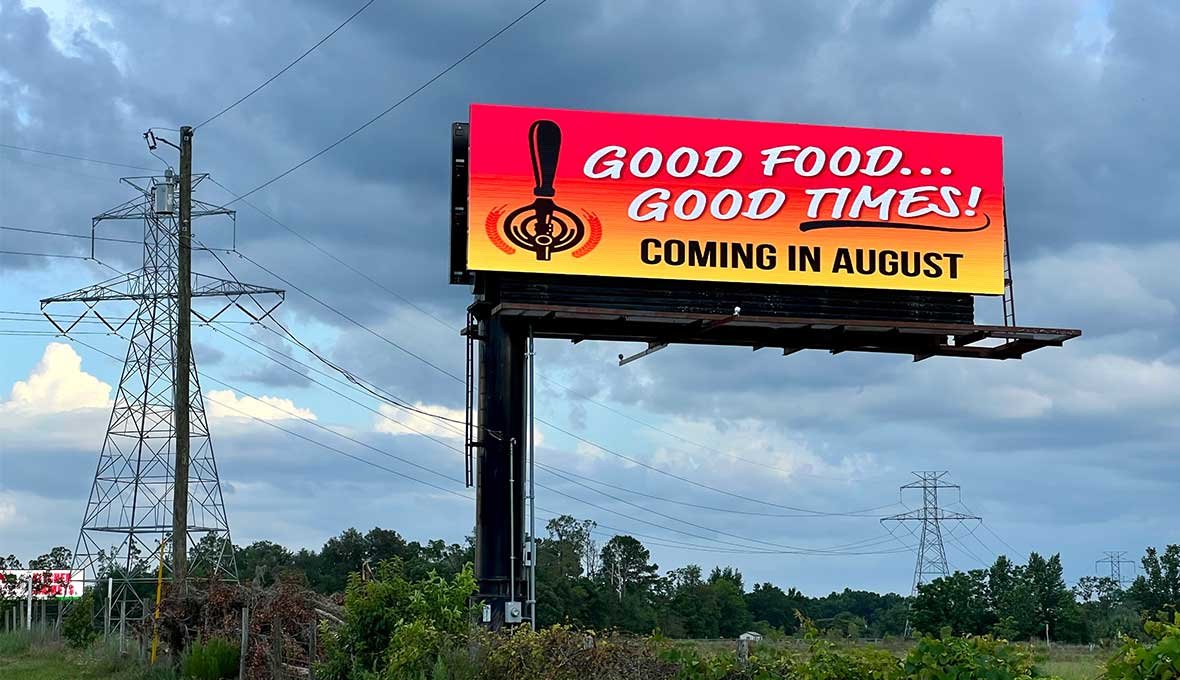

Large-Format Outdoor LED Displays
March II is engineered as an integrated system to meet the evolving demands of large-format outdoor LED displays.
March II features a standardized assembly design built around a unified cabinet frame. The same structural frame can accommodate LED modules with different pixel pitches, allowing flexible configuration without changing the cabinet structure. This approach simplifies assembly, reduces part variations, and improves production efficiency while maintaining consistent build quality.
March II features plug-and-play power and signal connections with an easy-mount system for fast on-site installation. Integrated side cable covers keep wiring concealed, delivering a clean rear appearance with no exposed cables, while reducing installation time and labor.
10000NITS
100–200W/m²
(Avg. Power Consumption)
SMD LEDs with large-size chips and gold wire bonding, combined with optical lens design, deliver high light efficiency and stable brightness while reducing power consumption and heat generation. This robust LED structure provides a reliable foundation for high-performance outdoor displays.
The matte black finish and extended louver structure reduce surface reflection and enhance contrast while providing effective shading from direct sunlight. This design helps images remain clear and vivid throughout the day, while also reducing heat buildup on the display surface.
Common-cathode technology enables independent voltage control for each RGB channel, minimizing energy loss and reducing heat generation during operation. By delivering only the required power to each color, March II achieves higher energy efficiency and improved thermal performance—without compromising display quality or brightness consistency.
March II is designed with multi-level redundancy to improve system reliability and uptime. Built-in backup mechanisms reduce the risk of unexpected downtime and help lower long-term maintenance costs.
This 2-in-1 power & signal connector is built with a backup design to maintain the operational stability of the screens.
Dual power supplies operate in a 1+1 redundancy configuration. If one PSU fails, the backup unit automatically takes over to ensure uninterrupted operation.
March II integrates a cloud-based monitoring system that enables centralized oversight and proactive diagnostics. Critical operating data—including LED pixel status, power supply faults, and power box temperature—is continuously monitored and reported in real time, helping reduce service costs, improve uptime, and minimize on-site maintenance.
March II is available in multiple standardized cabinet sizes, enabling flexible screen configurations for different project requirements.This modular size system simplifies design planning and allows displays to scale efficiently while maintaining consistent performance and structural precision.
With customized cabinet structures and 45° beveled module design, March II enables seamless 90° corner configurations, creating an ideal canvas for anamorphic and 3D advertising content and helping brands deliver more immersive and eye-catching visual experiences.
| Pixel Pitch (Resolution) | 4 mm | 6.67 mm | 10 mm | 10 mm(New) |
| LED Package Type | SMD+Lens | SMD+Lens | SMD+Lens | Hybrid |
| Pixels/m² (Density) | 62,500 | 22,500 | 10,000 | 10,000 |
| Module Dimensions | 12.6″x12.6″x0.98″ (320x320x25mm) | 12.6″x12.6″x0.98″ (320x320x25mm) | 12.6″x12.6″x0.98″ (320x320x25mm) | 12.6″x12.6″x0.98″ (320x320x25mm) |
| Module Matrix | 80x80 | 48x48 | 32x32 | 32x32 |
| Module Weight | 3.3LB (1.5KG) | 3.3LB (1.5KG) | 3.3LB (1.5KG) | 3.3LB (1.5KG) |
| Driving Method | 1/10 constant current | 1/6 constant current | 1/2 constant current | 1/2 constant current |
| Refresh Rate | ≥3,840 Hz | ≥3,840 Hz | ≥3,840 Hz | ≥3,840 Hz |
| Video Frame Rate | 60 frames/second | 60 frames/second | 60 frames/second | 60 frames/second |
| Grayscale | 65,536 (281 trillion colors) | 65,536 (281 trillion colors) | 65,536 (281 trillion colors) | 65,536 (281 trillion colors) |
| Color Depth | 16 bit | 16 bit | 16 bit | 16 bit |
| Contrast Ratio | 26,000 : 1 | 26,000 : 1 | 26,000 : 1 | 26,000 : 1 |
| Brightness | ≥10,000 NITS | ≥10,000 NITS | ≥10,000 NITS | ≥10,000 NITS |
| Brightness Control | 256 levels | 256 levels | 256 levels | 256 levels |
| Ideal Viewing Range | 16′ or greater | 18′ or greater | 28′ or greater | 28′ or greater |
| Ideal Viewing Angle | 120°(H) / 100°(V) | 120°(H) / 100°(V) | 120°(H) / 100°(V) | 120°(H) / 100°(V) |
| Max. Power Consumption | 54W/ft² (580W/m²) | 54W/ft² (580W/m²) | 54W/ft² (580W/m²) | 35W/ft² (380W/m²) |
| Avg. Power Consumption | 18W/ft² (195W/m²) | 18W/ft² (195W/m²) | 18W/ft² (195W/m²) | 12W/ft² (127W/m²) |
| Input Voltage | 90 - 264VAC | 90 - 264VAC | 90 - 264VAC | 90 - 264VAC |
| Ingress Protection | IP65 | IP65 | IP65 | IP65 |
| Operating Temperature | -40°F - +140°F (-40 ℃ - +60 ℃) | -40°F - +140°F (-40 ℃ - +60 ℃) | -40°F - +140°F (-40 ℃ - +60 ℃) | -40°F - +140°F (-40 ℃ - +60 ℃) |
| MTBF | >5,000 hours | >5,000 hours | >5,000 hours | >5,000 hours |
| LED Life - Span | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours |
| Cabinet Material | Aluminum Extrusion | Aluminum Extrusion | Aluminum Extrusion | Aluminum Extrusion |
| Cabinet Weight | 7.2LB/ft² (35KG/m²) | 7.2LB/ft² (35KG/m²) | 7.2LB/ft² (35KG/m²) | 7.2LB/ft² (35KG/m²) |
| Cabinet Size | 640x960x125mm; 640x1280x125mm; 960x960x125mm; 960x1280x125mm | |||
| * Specifications are subject to change without prior notice. | ||||
